Intach Ford

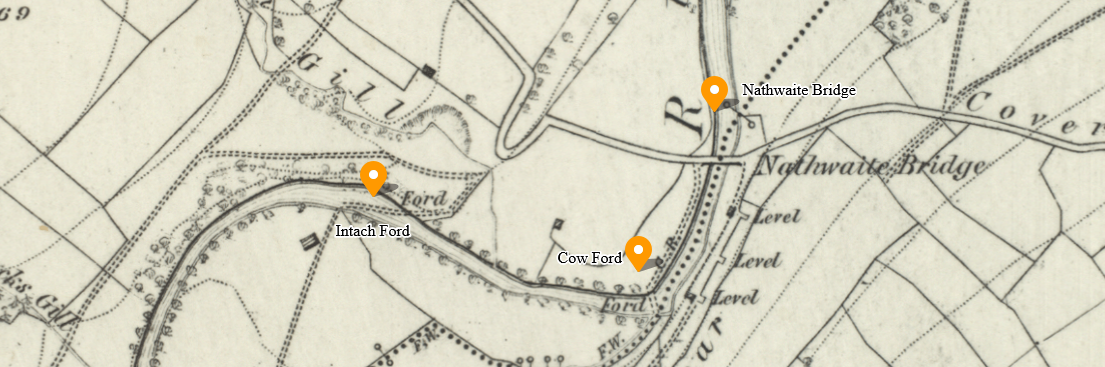

In the field of Bridge Barn, close to Nathwaite Bridge, there are two fords marked on the OS Series 1 map. This site page holds the details of our investigation into the fording point we think may be called Intach Ford.
The second ford upstream of Nathwaite Bridge – what the evidence suggests
Evidence strand
Findings
Implications
Cartographic

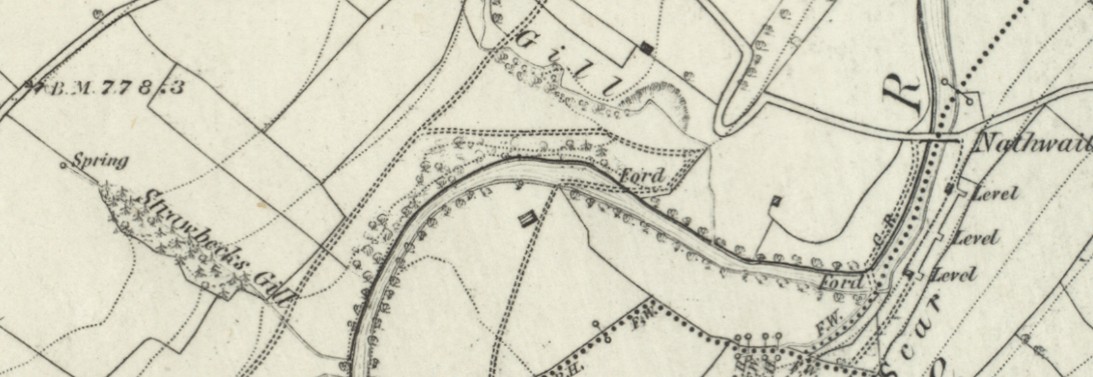

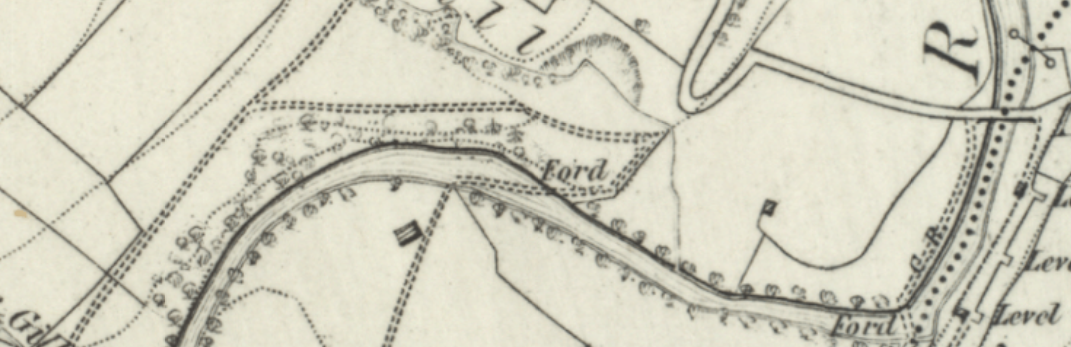

OS 1st-edition 6-inch (1856) marks “Ford” c. 90 m east-south-east of the bridge, with a dashed path on both banks.
On the 1845 Carlton tithe sketch the same line is shown as an un-named “occupation road” leading into the parcel later called Ford Intack.
The ford pre-dates the masonry bridge and survived at least into mid-Victorian times as a stock or cart crossing.
Topography & LiDAR

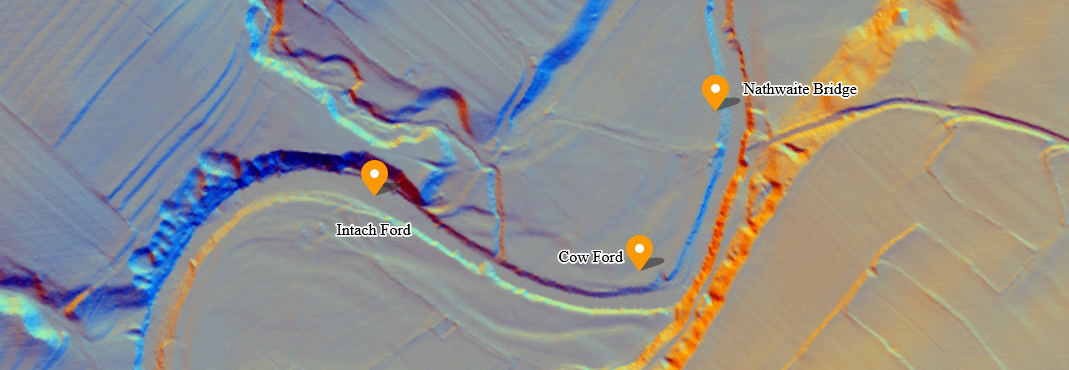

1 m LiDAR reveals a shallow, 2 m-wide sunken hollow-way approaching the ford from the north field corner and fading into a terrace on the south bank—exactly where the tithe “occupation road” ran.
Confirms repeated wheeled or hoof traffic; the hollow-way’s degree of infill suggests medieval or early-post-medieval longevity.
Field-name evidence
1732 Bolton Abbey estate survey lists “Ford Intack Close” (later tithe parcel 98) on the south bank; the name vanishes once Nathwaite Bridge becomes the main crossing.
The ford was a recognised landmark long enough to fix a parcel name—normally a sign of 17th-century or earlier usage.
Road-system context
The hollow-way aligns with the old Pack-horse road from Carlton to Park Rash (route to Wharfedale). When the Turnpike trustees rebuilt the dale floor road c. 1790, they sited Nathwaite Bridge a few metres upstream on firmer foundations, leaving the ford track to dwindle into a field lane.
The ford represents the earlier crossing on the pack-road; the bridge was a late-Georgian improvement to put wheeled traffic on a straighter, better-engineered line.
Hydrology

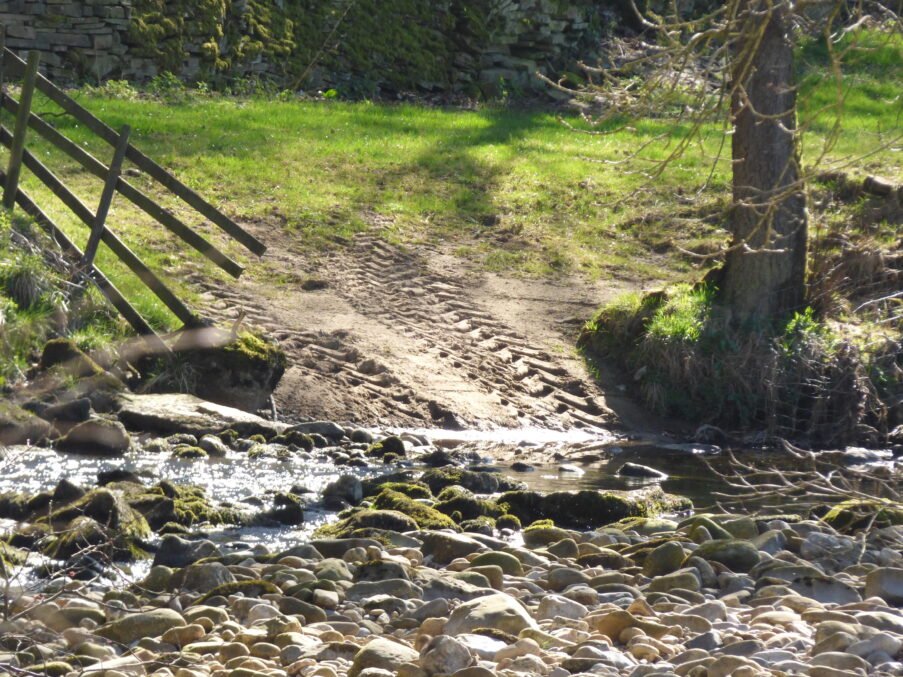

River Cover here spreads over a broad, shaly riffle only 20–30 cm deep in summer; a stable stone riverbed makes a natural ford, but floods cut it off in winter—exactly the limitation that prompted bridge construction.
Seasonal unreliability explains why, once a bridge was affordable, estates favoured the fixed span, and the ford dropped out of regular use.
Archaeological visibility
No masonry abutments or paving blocks are visible today; the crossing probably used laid timber “slew” poles or simply the natural bedrock. Occasional rounded pack-horse cobbles in the river bank hint at light surfacing.
Lack of built fabric means the ford leaves little trace beyond the hollow-way, explaining its absence from later maps once memory faded.
Synthesis
The ford is almost certainly the older, medieval (and probably much earlier) pack-horse crossing for traffic between Carlton/West Scrafton and Wharfedale.
Nathwaite Bridge, built c. 1790-1800, replaced the ford to guarantee year-round passage for lime and coal carts; the bridge’s siting a few metres upstream cut a more direct line to the new turnpike.
After the bridge opened, the ford’s track devolved to a farm access and later to pasture, leaving only the hollow-way and the field name Ford Intack as witnesses to its former importance.
For further confirmation, an on-foot inspection of the hollow-way banks for pack-horse kerbstones—or a dowsing of the riverbed for re-deposited paving—is worthwhile, and the Bolton Estate road orders (NYCRO ZBO IV/12) may still hold the 18th-century proposal drawing that fixed the bridge site and sealed the ford’s relegation to history.
